Max. Feeding Size: ≤60mm
Capacity:5-2200tph
Processing Materials: cobblestone, granite, basalt, iron ore, limestone, calcite, quartz, diabase, cement clinker and bauxite, etc.
VSI sand maker, also called VSI crusher, is the major machine for sand making plant. During the crushing process of sand making machine, raw materials hit each other and not hit any metal parts. Based on this, VSI crusher can have long service life. By virtue of the automatic airflow circulation, there is no dust pollution during the working process.

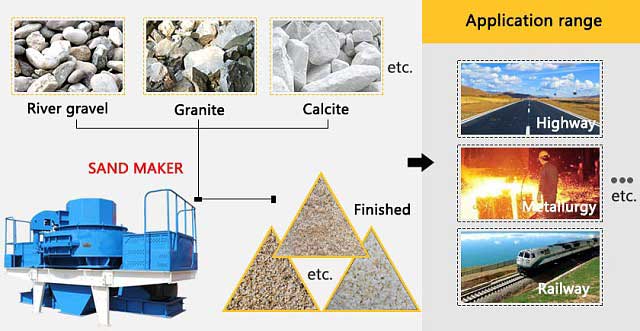

Raw materials and finished sand
VSI crusher is the world-advanced and high-efficient sand making equipment. VSI crusher is mainly used for secondary crushing and tertiary crushing, with hard and brittle materials as its raw materials like rocks, abradant, refractory material, cement clinker, quartz, iron ore and concrete aggregate, etc.

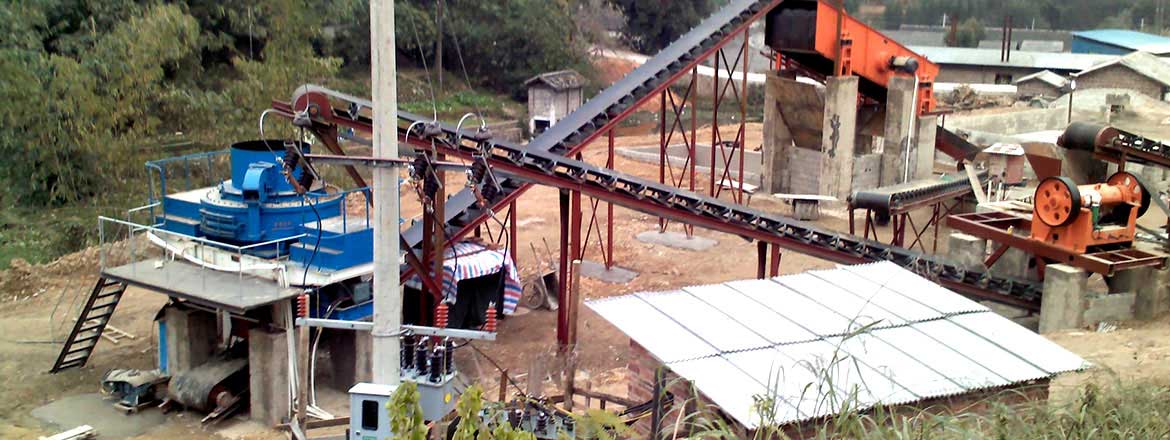

Workshop of sand maker
1: Finished products: in cubic shape, fine and even size
2: Used for coarse grinding and tertiary grinding, no special demands toward size of raw materials
3: No wear on body, durable and has long service life
4: No oil leakage, special sealing structure
5: Strong working capacity and high output

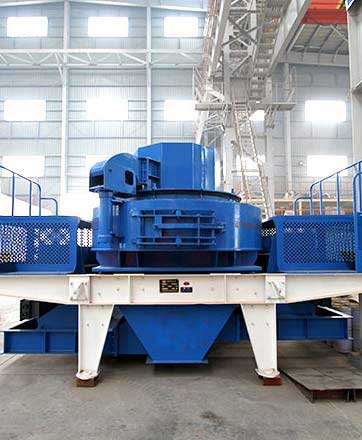

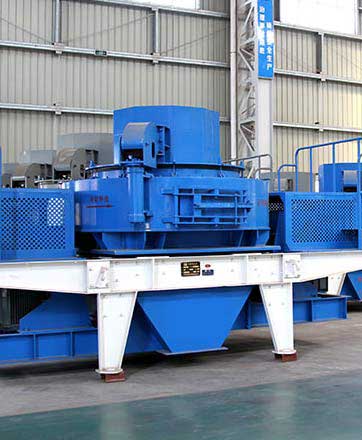

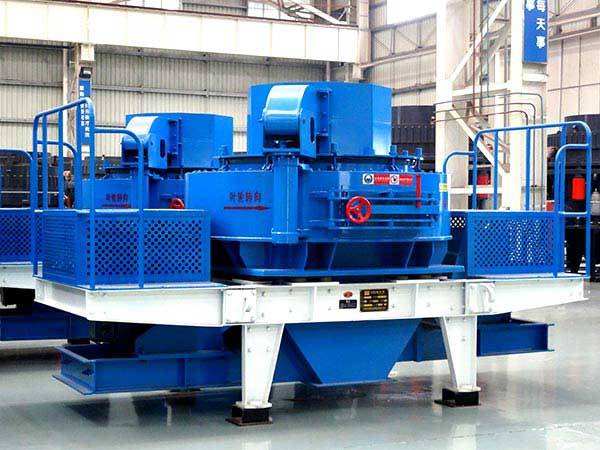

VSI sand maker
Currently, the Fote VSI crusher has become the most useful and reliable sand crusher. It is quite useful to make abradant and refractory materials. Besides, it is specially suitable for crushing many brittle and hard materials like cement, silica sand, steel grit, slag, copper ore, iron ore, gold ore, concrete aggregate and asphalt aggregate, etc.
Fote VSI crusher, as the first choice for making artificial sand and reshaping stones, is becoming more and more popular in industries of high-rise buildings, expressway, municipal engineering, water conservancy and concrete batching plant, etc.

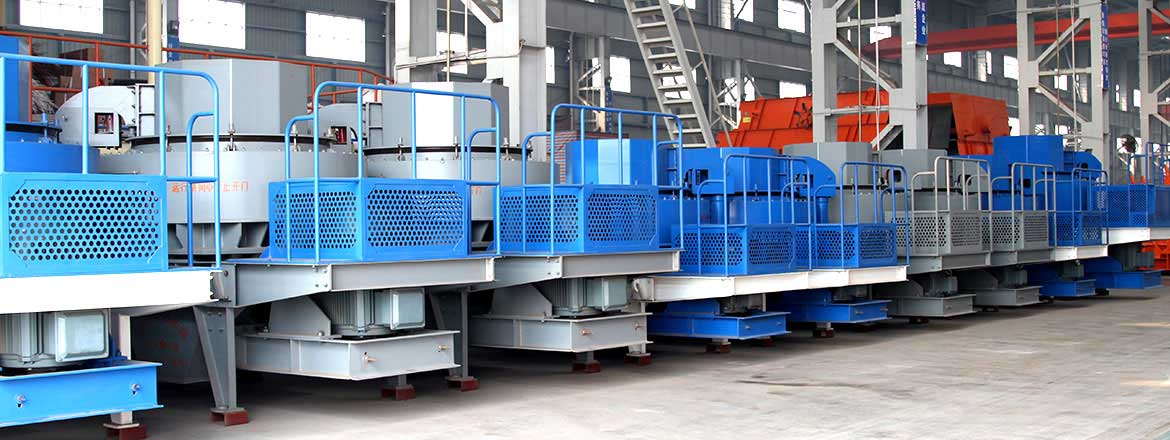

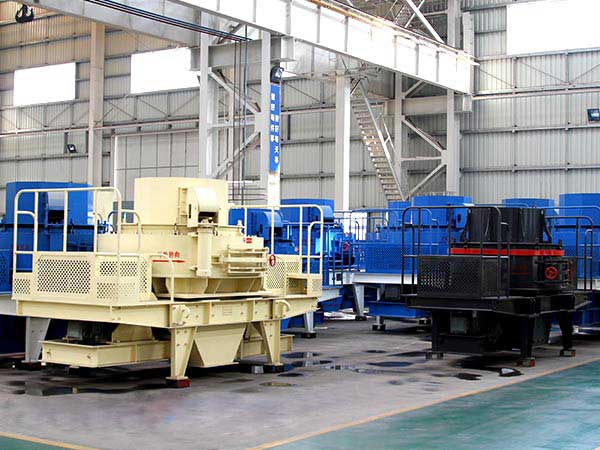

Workshop of Fote sand maker
| Model | FTMVSI-7611 | FTMVSI-8518 | FTMVSI-9526 | FTMVSI-1140 | FTMVSI-1145 | FTMVSI-1150 | |
| Capacity (t/h) |
Feed both at center and sides |
80-180 | 140-260 | 200-380 | 300-520 | 350-610 | 360-650 |
| Feed at center |
40-90 | 70-130 | 100-190 | 160-260 | 180-355 | 190-365 | |
| Max.feeding size（mm） |
Soft material |
35 | 40 | 45 | 50 | 50 | 50 |
| Hard material |
30 | 35 | 40 | 40 | 45 | 45 | |
| Rotation speed （r/min） |
1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1150-1300 | 1150-1300 | |
| Double Motor power（kw） |
4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 440 | 4P 500 | |
| Overall dimension （L×W×H）（mm） |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2700×3300 | 5500×2700×3300 | 5500×2700×3300 | |
| Power supply | 380V 50HZ | ||||||
| Lubrication station |
Double motor power of oil pump |
2×0.31Kw | |||||
| Safety assuance |
The oil pump assure enough oil supply and automatic switch off with no oil pressure,air cooling or water cooling,motor heating start up in winter |
||||||
| Overall dimension （L×W×H） （mm） |
820×520×1270 | ||||||
| Power of oil tank heater |
2KW | ||||||
